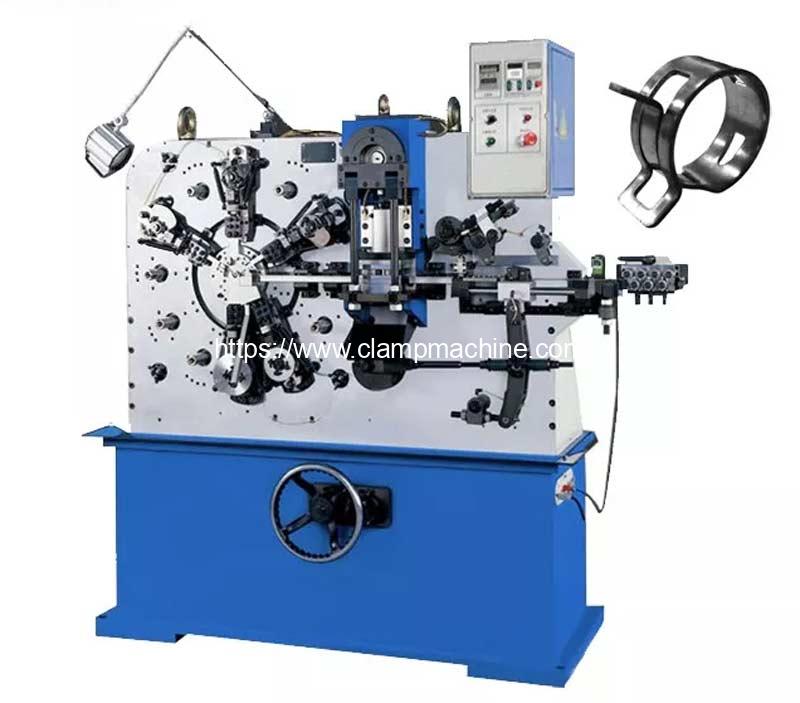

Automatic Spring Hose Clamps Making Machine
Description of pipe band clamp making machine
This machine is our state-of-the-art design for automatically producing wire/plate products in complex shapes.
The machine combines leveling, punching, bending and forming together, much higher efficient than conventional press forming.
Bending slides can be designed to be 360° adjustable (optional).
Main advantages comparing with conventional press forming of pipe clamp making machine
2.1 Saving material: conventional pressing machine needs wider strips for automatic production; This machine uses exact wide strip for production.
2.2 High efficiency: capability of one automatic machine is equal to that of seven pressing machines at least. And so energy consumption is also saved.
2.3 More stable processing quality because of continuous processing automatically.
2.4 Cheaper mould cost: one combined mould can replace several moulds on several pressing machines; Mould frames are also saved.
2.5 Automatic lubricating, less wearing, suitable for mass production.
This machine is a state of the art machine designed to automatically produce wire and plate products in complex shapes. It combines the processes of leveling, punching, bending and forming, making it more efficient than conventional press forming. OETIKER hose clamps and spring band clamps are made using the hose clamp machine.
Specification of Spring Hose Clamp Making Machine
| Model | RM-SFM26T | RM-SFM26TJQ | RM-SFM36T |
| Wire Diameter | 0.6-2.5mm | 0.6-3.0mm | 1.4—4.5mm |
| Max. Width of Strip | 30mm | 30mm | 35mm |
| Thickness of Strip | 0.3–1.2mm | 0.3–1.5mm | 0.8–2mm |
| Hardness of Strip | 80(CARBON) | 80(CARBON) | 80(CARBON) |
| Length of Feeding | 200mm | 200mm | 200mm |
| Max. Forming Speed | 60-150pcs/min(different product, capacity different) | 60-150pcs/min(different product, capacity different) | 60-150pcs/min(different product, capacity different) |
| Press Capacity | 12ton | 15ton | 20ton |
| Slide Capacity | 1500kg参考值 | 1800kg参考值 | 2500kg参考值 |
| Press Stroke | 16mm | 16mm | 20mm |
| Slide Stroke | 37mm | 37mm | 37mm |
| Motor Rating | 3.5kw | 7.5kw | 7.5kw(4极或6极电机选配） |
| Machine Size(L*W*H) | 2000*750*2000mm | 2000*850*2000mm | 2200*1000*2100mm |
| Weight | 2500kg | 2600kg | 3500kg |
